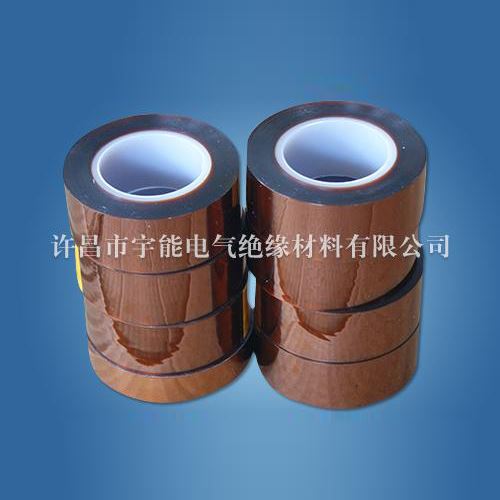

Polyie Film Tape

6051 Polyimide film is synthesized by polymerizing PMDA and ODA in strong polar solvents through the process of forming film and imine treatment at high temperature.

Characters

It is Class H insulating material.

This product has excellent physical, chemical, and electrical properties, atomic radiation resistant, solvent resistant, low & high temperature resistant, It performs successfully in the wide range of temperature as low as -452F(-269℃) and as high as +500F(+260℃). Because of its unique excellent properties,it is the ideal choice among many applications.

Application

This product can be used in flexible prinyed circuits and as insulating materials of flat electric cables,electromagnetic wires and motors.

Specification

Nominal thickness(mm):0.025, 0.04, 0.05,0.075, 0.10, 0.125

Nominal width(mm): 500,914
