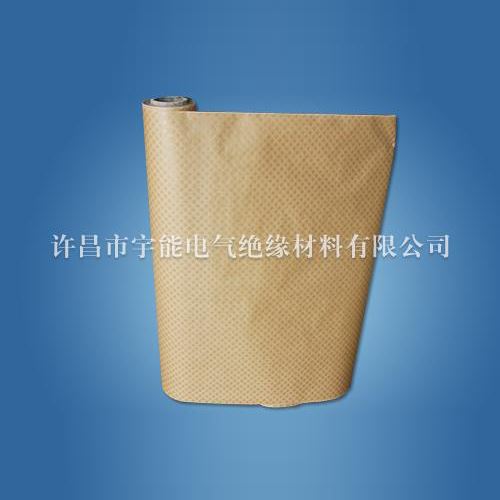

Diamond Dotted insulating paper

Diamond Dotted insulation paper is formed by coated the special modified epoxy resin in the shape of diamond on the electrical insulation paper

Characters

due to the special modified epoxy resin in the shape of diamond,it can guarantee the oil immersion and gas discharge so as to ensure the security and reliability of insulation structure

Application

It is Widely used in oil-immersed power transformer insulation and ratios between layers of the insulation.

Specification

Nominal thickness(mm):0.08, 0.13 ,0.18,0.20, 0.25

Nominal width(mm):960mm ,490mm
