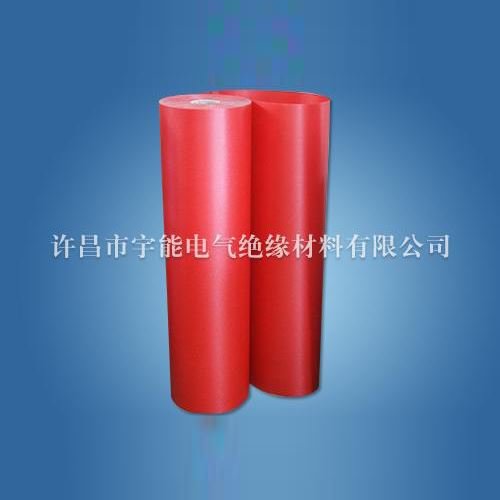

DMD Epoxy Pre-impregnated Material

Prepreg DMD (class F) is formed in the process of precuring the modified F-class DMD with Impregnation of hi-temp resistant Epoxy resin into B-stage by baking.

Characters

It is Class F insulating material.

This product has long shelf life at room temperature, low precuring temperature and time, showing excellent electrical insulation, bonding and heat-resistant properties.

Application

It is used for liner insulation of copper foil (aluminum foil)-wrapped Low voltage coils in dry-type transformer and slot insulation and interphase insulation in B~F class motor & electrical appliances.

Specification

Nominal thickness(mm):0.15, 0.18, 0.20, 0.23, 0.25 , 0.30, 0.35, 0.40, 0.45

Nominal width(mm):1000
