6641-Polyester Film/Polyester Fibre Non-woven Fabric Flexible Composite Material (Class F DMD)

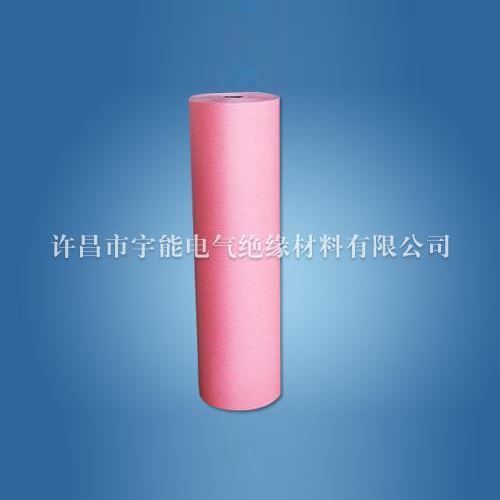

6641  Polyester film/polyester fiber non-woven fabric flexible composite material (F-DMD) is made from high melting point polyester film and hot-rolling polyester fiber non-woven fabric. The polyester film and polyester non-woven fabric are bonded by F-class adhesive.

Characters

It is Class F insulating material.

This product has high mechanical strength, excellent electrical property, and immerse the function.

Application

It is suitable for slot insulation, interphase insulation and liner insulation in Y2 and other F-class electrical motor and electric apparatus.

Specification

Nominal thickness(mm): 0.18, 0.20, 0.25, 0.30, 0.35,

Nominal width(mm):1000
