6520-Polyester Film /Fish Paper Flexible Composite Material

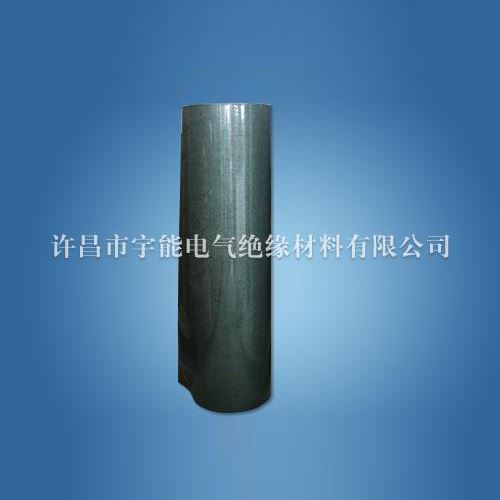

6520 Polyester film /fish paper flexible composite material is a two-layer flexible laminate in which polyester film is bonded with fish paper.

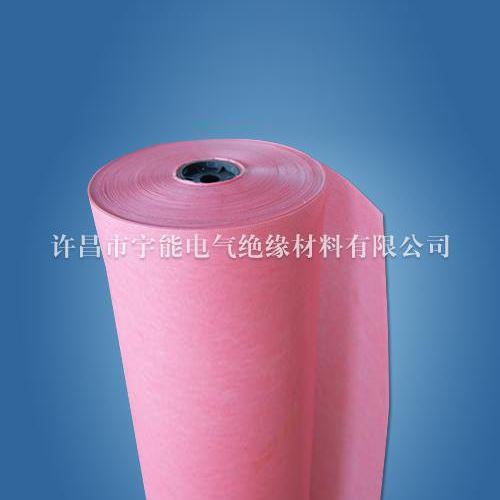

6521 Polyester film /insulating paper flexible composite material is made of polyester film with insulating paper.

Characters

It is Class E insulating material.

This product has excellent dielectric property and high mechanical property.

Application

It is suitable for slot insulation, interphase insulation and liner insulation in electric motor and electric apparatus.

Specification

Nominal thickness(mm):0.15, 0.17, 0.20, 0.22, 0.25 , 0.27, 0.30, 0.35, 0.45

Nominal width(mm):1000
